<< Click to Display Table of Contents >> Navigation:  Building an Electronic Form > New Control > Help Area > Text Help Area

To create a text help area:



1.Select New Control.



2.Select Help Area.



3.The Help Area Maintenance screen will display.

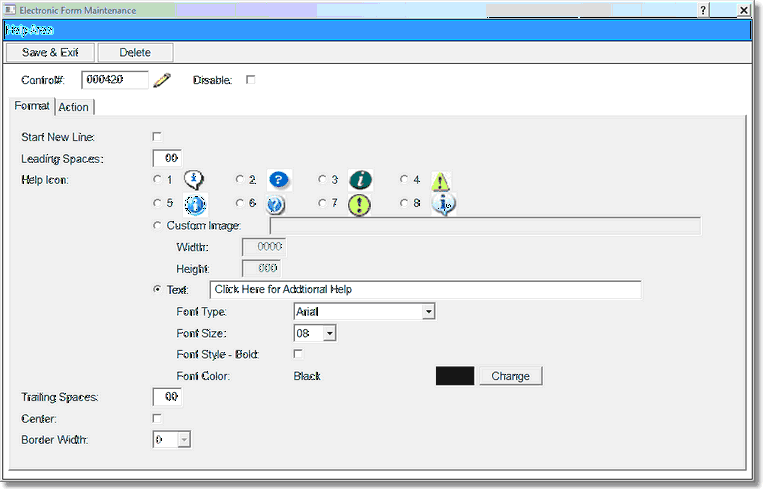

Select Electronic Form Maintenance > Electronic Form > New Control > Help Image



Help Area



4.Select Disable if the Help Area is to be inactive on the electronic form but is not to be deleted from the setup. A disabled control will have an asterisk (*) appear next to the control number on the Electronic Form Maintenance display. When the form is previewed, the help area will not appear on the screen.



5.If the entry is to be on a new line in the Electronic Form, select Start New Line.



6.Select the Leading Spaces field and enter the number of spaces before the help area.



7.Help Icon is used with a mouse over help area.



8.The Custom Image field is not in use at this time.



9.Select Text to enter what will display on the electronic form for the user to select to open the text help area.



10.To set the font for the help area, select the Font Type field.  The font Options are: Arial, Courier New, and Times New Roman.



11.To set the size of the font for the text, select the Font Size field. The font size options are 06-24.



12.To set the font in bold select Font Style – Bold.



13.To set the color of the font, select Change in the Font Color field.



14.Enter the number of spaces to follow the help area by selecting the Trailing Spaces field.



15.To center the help area, select the Center field.



16.To set the action of the help area, select the Action tab on the Help Area Maintenance screen.

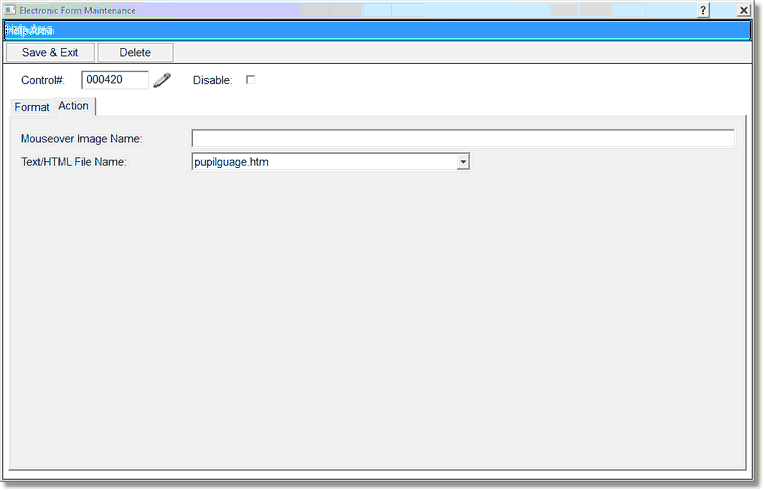

Select Electronic Form Maintenance > Electronic Form > New Control > Help Image > Action



Help Area



17.Select the File Name of the text help area on the Text/HTML File Name field. User defined text help areas may be created see Help Areas  for more information.



18.To save the information entered, select Save & Exit. Select Delete to exit no update.



The following are available to be used as an HTML help area:



 Ballard Score                                        NewBallardScore.htm

 ESI Algorithm Scale                                ESIAlgorithm.htm

 Pupil Gauges                                        pupilguage.htm

 Glasgow Coma Scale                                ADULTGLASCOWCOMASCALE.txt

 Braden Scale                                        BRADEN.htm
