Attaching a Reflex to a Radio Button Option



1.Select the Reflex tab on the radio button option control then select the magnifying glass icon. A reflex lookup screen will display. Select the appropriate reflex. The code of the selected reflex will display in the appropriate code field on the screen.



2.Key in a value in the field labeled “Value”. This is the value that will be figured into the Answer Range. The value should at least be equal to 1 (since the default Answer Range is > 0 or < 999).

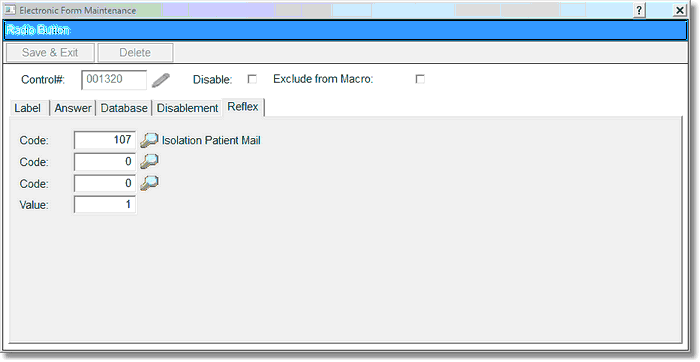

Select Radio Button Control > Reflex



Radio Button Reflex





3.An (R) appears on the maintenance  screen when a drop-down control has a reflex code in the setup.



4.Select Save & Exit.
