<< Click to Display Table of Contents >> Navigation:  Vitals > Recording Ventilator Information > Recording the Vent FiO2

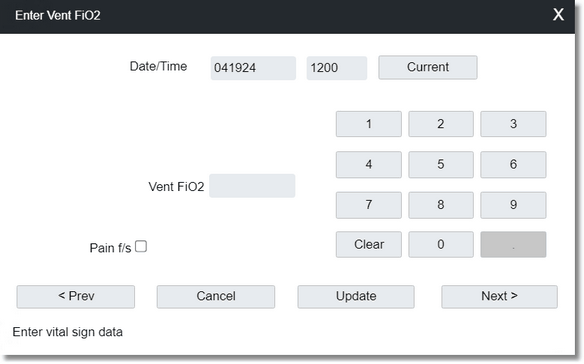

1.Select Vent FiO2 on the flow chart. The Enter Vent FiO2 box displays.



Vent FiO2





2.The Date/Time fields default to the current date and time. Modify these fields, if necessary.



3.In the Vent FiO2 field, use the number pad to enter the vent FiO2.



4.Select the Pain f/s check box to have the information print to the Pain Flowsheet.



5.Select Next to save the information and advance to the next question, Update to save the information and return to the flow chart, Cancel to clear the entry and return to the flow chart, or Prev to save the information and go to the previous question.
